Bar Bending Schedule

The premier CAD solution for Bar Bending Schedules. Scale efficiency with Rebar order estimating to optimize material usage and minimize waste on every build project.

Try access here

Save and Print

Send Feedback

CAD Engine Preview

Visualize and refine structural rebar shapes with precision drafting tools and automated CAD generation.

Bar Parameters Entry

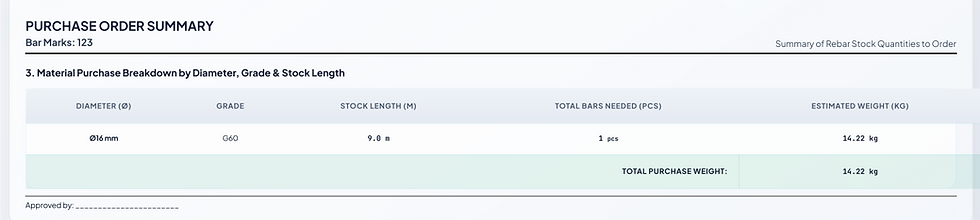

sample print preview

Ready for fabrication

BAR BENDING SCHEDULE • CAD ENGINEERING • AUTOMATED PRECISION • REBAR COUNT • CUT LENGTH • WEIGHT METRICS •

ITEMS

1,452

REBAR COUNT

2,845

CUT LENGTH

1,245.8m

WEIGHT

1,428.5kg

Detailed Rebar Schedule

Export Data

Bar Mark

Grade

Diameter

Shape

Dimensions

Cut Length

Quantity

Stock Length

B1-01

G60

16 mm

Stirrup

A=100mm, B=100mm

1200 mm

12 pcs

12.0 m

B2-02

G60

20 mm

U-Shape

A=150mm, B=150mm

1500 mm

8 pcs

12.0 m

B3-03

G40

25 mm

Stirrup

A=120mm, B=120mm

1400 mm

15 pcs

12.0 m

B4-04

G60

28 mm

Stirrup

A=100mm, B=100mm

1200 mm

10 pcs

12.0 m

Advanced Services

Bar Bending Schedules

Automated generation of precise rebar cutting lengths for structural steel fabrication.

Automated CAD Drafting

Direct integration with CAD software for seamless structural drawing and technical documentation.

Structural Analysis

Comprehensive structural calculations and material optimization for high-performance steel projects.
